Commercial Daylighting in Scotland: A Guide for Architects, Specifiers and Contractors

Natural daylight is an important consideration in modern commercial building design. From schools and healthcare facilities to offices, retail premises and industrial buildings, introducing daylight can help create brighter, more comfortable environments while offering opportunities to reduce reliance on electric lighting.However, many commercial buildings contain deep-plan interiors, windowless rooms, corridors and other areas where conventional windows or rooflights may not provide a practical solution.

At Solatube Scotland, we work with architects, specifiers, contractors and building owners to introduce natural daylight into these challenging spaces using high-performance tubular daylighting systems.

Our commercial daylighting systems can be incorporated into new-build developments and refurbishment projects across Scotland.

In This Guide



Solatube commercial daylighting systems providing natural daylight in a modern office.

Why Natural Daylight Matters in Commercial Buildings

Good daylighting design is about more than simply making a building brighter.

Natural daylight can contribute to visual comfort, occupant wellbeing and the overall quality of an internal environment. It also provides a connection with the changing daylight conditions outside.

In commercial buildings, these benefits can be particularly valuable:

  • Schools: Creating bright, welcoming learning environments.
  • Healthcare: Introducing natural daylight into internal corridors, waiting areas and communal spaces.
  • Care homes: Improving the character and comfort of internal environments.
  • Offices: Bringing daylight into deeper areas of the building floorplate.
  • Retail and industrial premises: Providing natural illumination to spaces otherwise dependent on electric lighting.

Daylight can also contribute to a building’s wider sustainability strategy, particularly when combined with appropriate electric lighting controls.

How Do Commercial Tubular Daylighting Systems Work?

Solatube systems capture natural daylight at roof level and transfer it through highly reflective rigid tubing to the interior of a building.

The process involves three main stages:

1. Capturing Daylight

A specially engineered rooftop dome collects available daylight, including diffuse daylight during overcast conditions. This is particularly relevant to buildings in Scotland, where daylight conditions vary throughout the year.

2. Transferring Daylight

Highly reflective rigid tubing transports daylight from the roof towards the occupied space. Adjustable elbows and extension sections allow the system to accommodate suitable building layouts and obstacles.

3. Distributing Daylight

An interior diffuser distributes daylight into the room below. Different diffuser arrangements are available for suspended ceilings, plasterboard ceilings and open commercial spaces.

Unlike conventional rooflights, tubular daylighting systems can transport daylight through roof voids and other building spaces without requiring a continuous glazed opening.

Explore the technology behind the Solatube SolaMaster daylighting system.

Commercial Daylighting Applications

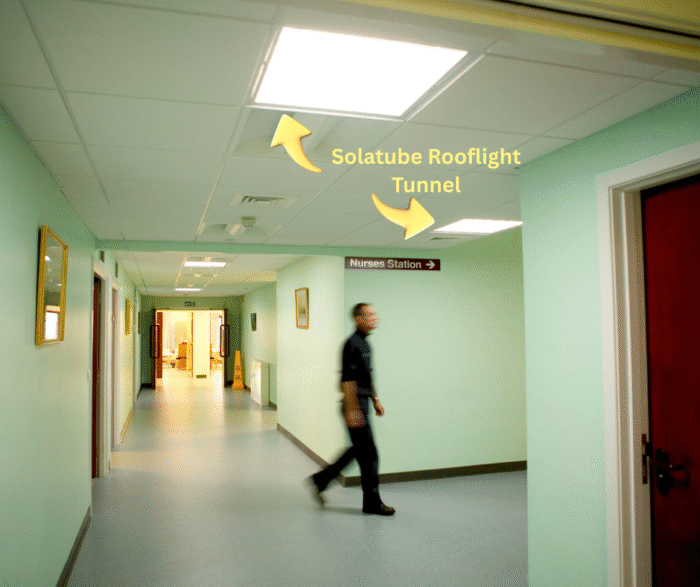

can Solatube be used to pipe daylight to corridors in hospitals

Schools and Educational Buildings

Classrooms, corridors, libraries and communal areas can benefit from additional natural daylight.

Solatube systems can be particularly useful in internal teaching spaces where conventional windows are limited or where extensive building layouts make daylight penetration difficult.

Daylighting can be considered during new school construction or as part of refurbishment and improvement programmes.

Hospitals and Healthcare Facilities

Healthcare buildings frequently contain internal circulation routes, waiting areas and support spaces with limited access to natural daylight.

Introducing daylight can help create more welcoming environments for patients, visitors and staff.

Solatube systems can be considered for suitable healthcare applications, with installation details reviewed against the specific building requirements.

Care Homes

Care homes often include internal corridors, communal spaces and circulation areas where natural light is limited.

Introducing daylight into these areas can make the interior feel brighter and more welcoming.

Solatube Scotland has supplied systems for care home applications, including a project in Aberlour involving twelve Solatube 290DS daylighting systems.

Offices and Commercial Workplaces

In deep-plan offices, daylight from perimeter windows may not reach internal meeting rooms, corridors and central working areas.

Commercial tubular daylighting systems can help address this challenge by bringing natural daylight directly from roof level to selected interior locations.

The Solatube SolaMaster range provides options for both open and closed ceiling arrangements.

Warehouses, Retail and Industrial Buildings

Large commercial and industrial buildings often have extensive roof areas and high internal ceilings.

These spaces may be suitable for larger tubular daylighting systems designed to distribute natural daylight over substantial interior areas.

The Solatube SkyVault range has been developed for large-volume spaces, including warehouses, industrial buildings and sports facilities.

Choosing the Right Commercial Solatube System

Solatube offers different systems to suit varying building sizes, ceiling arrangements and daylighting requirements.

Brighten Up Series

Suitable for smaller commercial spaces, including corridors, washrooms, offices and other areas requiring targeted daylight delivery.

SolaMaster Series

Designed for medium-sized commercial spaces, including classrooms, offices, healthcare environments and retail premises.

The SolaMaster range includes options for suspended ceiling grids and open ceiling applications, with different diffuser and daylight control configurations.

SkyVault Series

Developed for larger commercial and industrial spaces with higher ceilings and more demanding daylight distribution requirements.

The SkyVault M74 system uses a 750mm diameter reflective tube and offers configurations suited to large-volume interiors.

View the complete Solatube commercial product range.

Key Design and Specification Considerations

For architects and contractors, incorporating tubular daylighting at an early stage of the design process can help simplify coordination with other building elements.

Several factors should be considered:

Roof Construction

The roof covering, pitch, structural arrangement and available roof positions influence the appropriate mounting and flashing details.

Roof-to-Ceiling Distance

Tube length, system diameter and the number of bends can influence the amount of daylight delivered. The proposed route should be assessed against the performance requirements of the space.

Ceiling Configuration

Suspended ceiling grids, plasterboard ceilings and open industrial ceilings may require different diffuser and support arrangements.

Internal Services and Obstructions

Structural steelwork, ductwork, cable trays and other services must be considered when planning tube routes.

Daylight Performance

The number, position and specification of systems should reflect the building’s layout, intended use and target daylight levels.

Lighting Controls

Where reducing electric lighting consumption is an objective, daylight-responsive electric lighting controls should be considered alongside the natural daylighting system.

For additional information, visit our commercial daylighting frequently asked questions.

Can Commercial Daylighting Reduce Energy Consumption?

Natural daylight offers an opportunity to reduce the use of electric lighting during daylight hours.

However, the actual savings depend on the building’s location, operating hours, daylight availability, installed lighting system and control strategy.

For example, a commercial building operating predominantly during daylight hours may benefit from lighting controls that reduce electric lighting output when sufficient natural daylight is available.

Solatube systems can also complement rooftop solar photovoltaic installations by introducing daylight through relatively compact roof penetrations.

Read our existing article on commercial daylighting and solar PV for further information.

for further information.

Commercial Daylighting Projects in Scotland

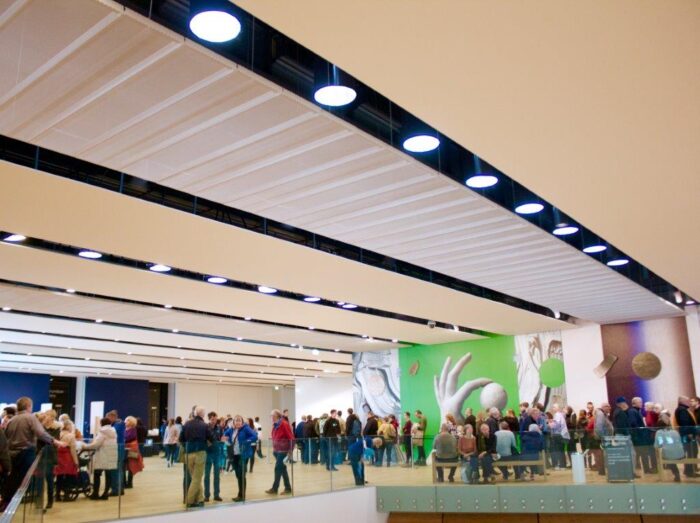

will a light tube skylight work in a museum

Solatube technology has been used across a wide variety of commercial and public buildings.

V&A Dundee

One notable Scottish example is the V&A Dundee museum, where sixty Solatube 330DS-O daylighting systems were incorporated into the building.

The installation introduced natural daylight into the museum’s central areas, with daylight dimming controls allowing lighting conditions to be adjusted for different uses.

Read the full V&A Dundee Solatube case study.

Children’s Hospice, Balloch

Solatube Scotland has also supplied daylighting for a children’s hospice project in Balloch, helping introduce natural daylight into an internal corridor.

Care Home, Aberlour

A care home project in Aberlour incorporated twelve Solatube 290DS systems, demonstrating how tubular daylighting can be used in residential healthcare environments.

These projects illustrate the flexibility of Solatube technology across different building types and installation requirements.

Commercial Daylighting for New Builds and Refurbishments

Whether designing a new building or improving an existing property, early consideration of natural daylight can help identify opportunities that might otherwise be overlooked.

For new-build developments, daylighting can be coordinated with roof design, structural layouts, ceiling systems and mechanical services.

For refurbishment projects, existing roof construction and available tube routes will influence feasibility and system selection.

In both cases, reviewing architectural drawings and discussing the intended application can help establish the most suitable approach.

Discuss Your Commercial Daylighting Project with Solatube Scotland

At Solatube Scotland, we work with architects, consultants, main contractors, developers and building owners to identify suitable natural daylighting solutions.

We can assist with product selection, technical information, proposed system configurations and installation considerations.

If you are working on a school, healthcare facility, care home, office, retail development or industrial building, we would welcome the opportunity to discuss your project.

Planning a commercial daylighting project?

Contact Solatube Scotland to discuss your project or request technical information →

Where available, please include roof plans, building sections, ceiling layouts and details of the areas requiring natural daylight.
